3.3.3. Ajout et édition d’événements de maintenance
This represents a guide on how to add or edit maintenance event data in TWW.
3.3.3.1. Généralités
Maintenance events can be connected to one structure or to many. Therefore TWW uses a intermediary RE_table to model the n:m relationship (re_maintenance_event_wastewater_structure)
Maintenance events can be created or linked at the same time a new wastewater structure or a new reach is created.
3.3.3.2. Ajouter un nouvel incident de maintenance
Activez le mode d’édition.
With the Identify Features tool you can select wastewater_structures or reaches by selecting their corresponding layer (vw_tww_wastewater_structure or vw_tww_reach).
The respective form will open. Change to the Maintenance_Events tab.
Créér un nouvel incident de maintenance avec le bouton Ajout entité-enfant.

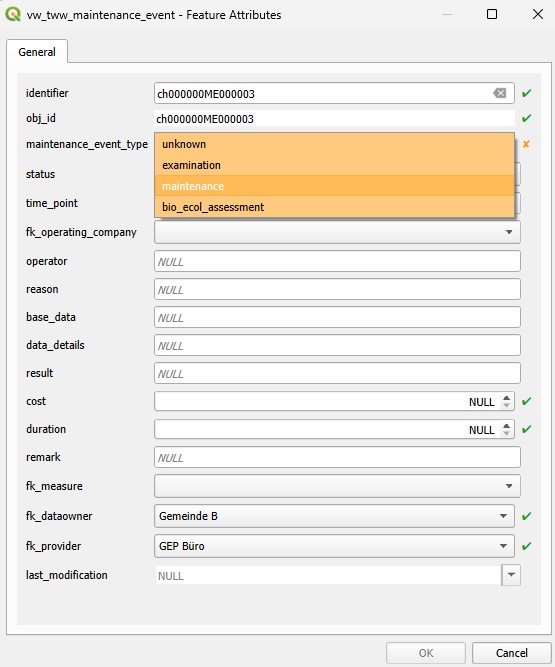

Edit the new record in the vw_tww_maintenance_event form, then click OK
3.3.3.3. Créer un lien avec un incident de maintenance existant
Activez le mode d’édition.
With the Identify Features tool you can select wastewater_structures or reaches by selecting their corresponding layer (vw_tww_wastewater_structure or vw_tww_reach).
The respective form will open. Change to the Maintenance_Events tab.
Click the Link existing child feature(s) button.
Choose a maintenance event from the Manage linked features for … window by choosing a record. Then click the Link selected button and OK
Fermez la fenêtre en cliquant sur OK et désélectionnez le mode d’édition pour enregistrer les modifications.
3.3.3.4. Supprimer le lien avec incidents de maintenance
Activez le mode d’édition.
With the Identify Features tool you can select wastewater_structures or reaches by selecting their corresponding layer (vw_tww_wastewater_structure or vw_tww_reach).
The respective form will open. Change to the Maintenance_Events tab.
Select a maintenance event by clicking in the box (box gets yellow), then click the Unlink selected child feature(s) button.
Attention
Unlink means, that there is only the record in the RE-table deleted. The maintenance event record itself is not deleted and can by linked with other wastewater structures. When using the Delete selected child feature(s) button, the maintenance_event- and the re_maintenance_event_wastewater_structure-record are deleted.
3.3.3.5. Édition
Do as described in adding - but just edit existing maintenance events.
Or edit the vw_tww_maintenance_event table (in layer group inspection)
3.3.3.6. Multi Edit
Multi edit with linked tables is implemented in QGIS. It is possible to create or to link a maintenance event to a selection of reaches or wastewater structures in multiedit-mode.
