Customisation of labeling and symbology behaviour

Relevant fields

The symbology and labeling behaviour of tww_app.vw_tww_wastewater_structure depends on the following fields:

• _channel_function_hierarchic

• _channel_usage_current

These two values are stored in tww_od.wastewater_node and updated by triggers. These triggers are defined so that the database sysadmin can influence how the labelling is executed.

Labelling

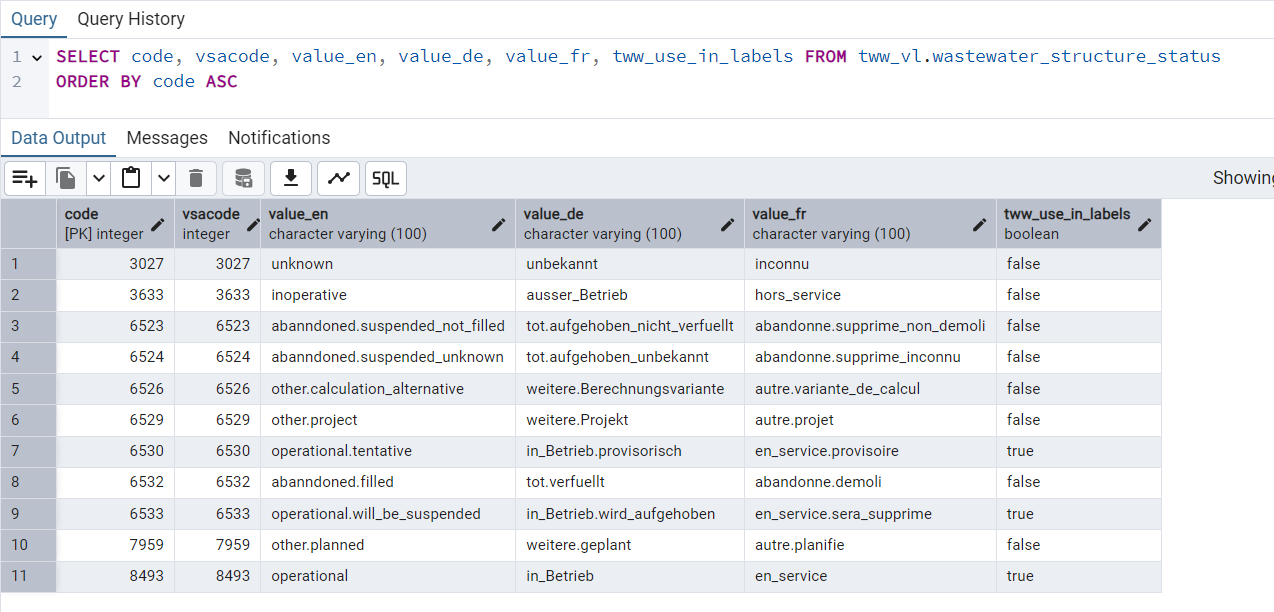

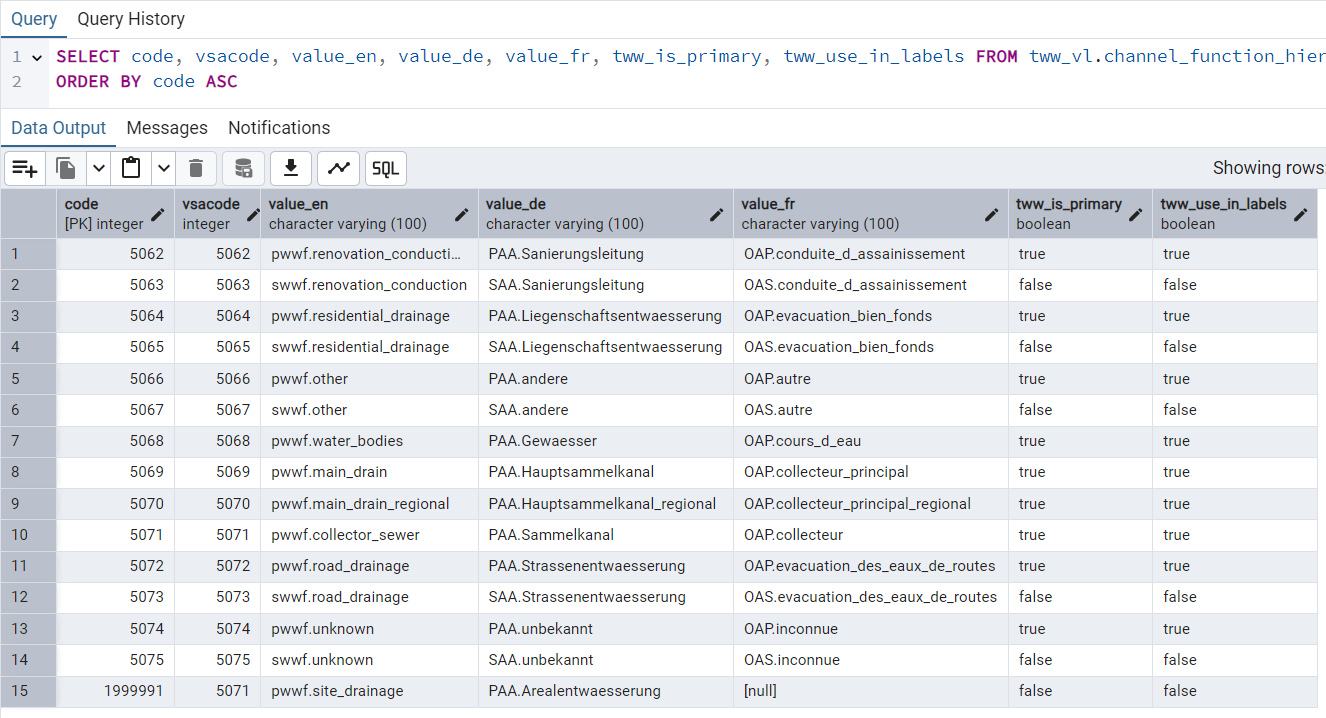

Per default, we only label inflows from primary reaches, but all outflows regardless of hierarchy. If you want to include secondary inflows in the labels, this can be achieved by setting the field tww_vl.channel_function_hierarchic.tww_include_in_labels to true for all entries.

Symbology

The relevant fields are taken from the primary wastewater node of a wastewater structure. The corresponding channel values are defined by triggers that use the following priorisation scheme

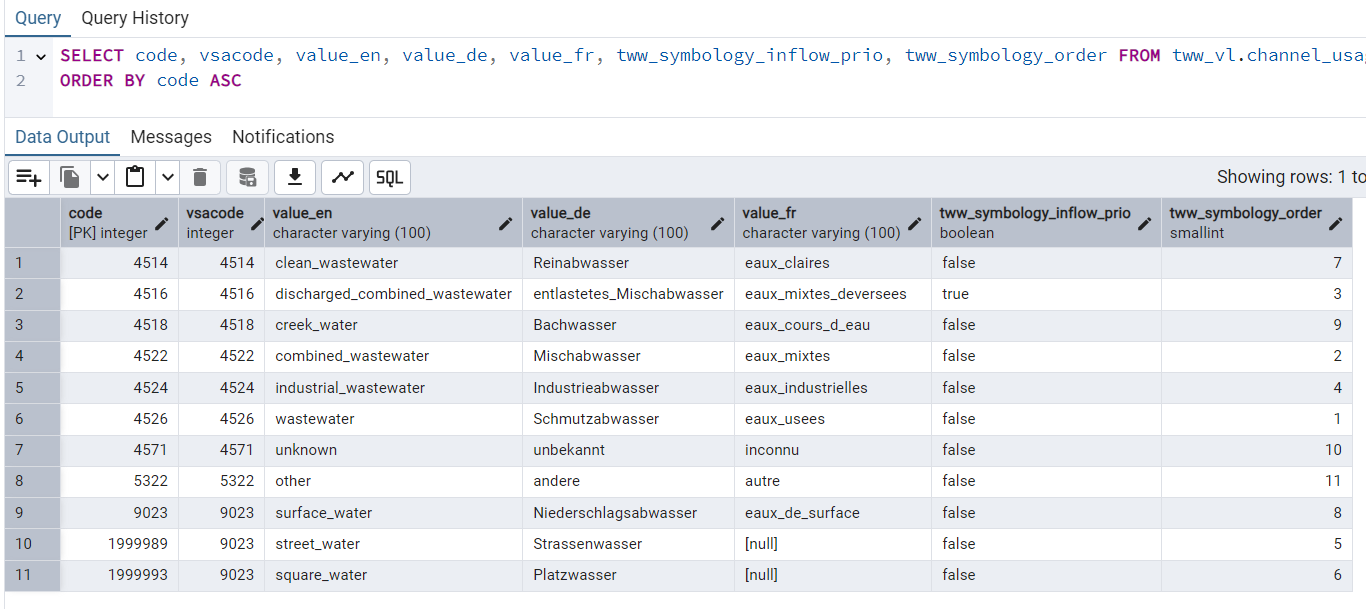

1. incoming channels where tww_vl.channel_usage_current.tww_symbology_inflow_prio are true

2. outgoing channels by tww_vl.channel_function_hierarchic.tww_symbology_order

3. incoming channels by tww_vl.channel_function_hierarchic.tww_symbology_order

4. outgoing channels by tww_vl.channel_usage_current.tww_symbology_order

5. incoming channels by tww_vl.channel_usage_current.tww_symbology_order

By altering the corresponding field in tww_vl, the trigger logic’s behaviour can be influenced.
